poly solar panel 250W proved by the CE,IEC,TUV,UL,MCS,VDE,SAA.

Place of Origin : China

Certification : CE, ISO9001:2000, ROHS, TUV, UL

Payment Terms : TT, L/C

Contact Now

Specifications

1.poly panel for 250W ,high efficiency,best cost performance
2.proved by the CE,IEC,TUV,UL,MCS,VDE,SAA.
3.quick delivery

Features:

1. High cell efficiency(up to 16%) with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3. Unique frame design with high mechanical strength for easy Installation.Entire module certified to withstand high wind loads (240 Pascal) and snow loads (540 Pascal)
4 Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions, PET sheet imported from Toyo Japan with advanced encapsulating material
5. Outstanding electrical performance under high temperature and low irradiance conditons,tolerance from +/- 3% ensures power output reliability
6. Excellent performance in harsh weather , Outstanding electrical performance under high temperature and low irradiance
7. Strictly quality control ensure the stability and reliability, totally 30 QC procedures

Solar panel applications:


1.solar panels for Commercial and industrial building roof-top systems
2.solar panels for residential roof-top systems
3.solar panels for any commercial or industrial ground mount systems
4. Remote telecommunication power supply
5.solar panels can use for Water pumping systems
6.solar panels can use for On-grid/Off-grid system
7.solar panels can use for Rural electrification and Solar farms

Solar panel quality and warranty:

1.Peak power of single panel in guaranteed in +-3%power tolerance.
2. Average power of panels in single order is guaranteed not less than the peak power
3. Rigorous quality control meets the highest international standard
5.No less than 97% output power in the first year
6.No more than 0.7% annual declination since the second year
7.25-year warranty at 80.2% power output
8.Product warranty enforced by CHUBB Insurance
9.Enhanced design for easy installation and long-term reliability

Technical Specification:

CharacteristicsZDNY-250P60
Max.Power(Pmax)250Wp
Optimum Operating Voltage(Vm)30.76V
Optimum Operating Current(Im)8.13A
Open-circuit Voltage(Voc)37.75V
Short-circuit Current(Isc)8.55A
Cell Efficiency17.1%
Solar Cellpoly-crystalline 156*156mm
Output Tolerance(Pmax)0~+3%
Number of cells60cells in series
Module Dimension1650*992*40mm
Weight19.5kg
Max.System Voltage1000V(TUV)/600V(UL)
Max.Series Fuse Rating15A
Output CablePV 4mm2
Cable Length90cm±5
Number of bypass diodes6
Temperature cycling range(-40~85°C)
NOTC47°+-2 °C
Temperature coefficients of Isc+(0.053±0.01)%/K
Temperature coefficients of Voc-(0.35±0.001)%/K
Temperature coefficients of Pmax-(0.40±0.05)%/K
Load Capacity285pcs/20'GP
756pcs/40'HQ

Certificates:

poly solar panel 250W proved by the CE,IEC,TUV,UL,MCS,VDE,SAA.

sample:

poly solar panel 250W proved by the CE,IEC,TUV,UL,MCS,VDE,SAA.

inside our company:

poly solar panel 250W proved by the CE,IEC,TUV,UL,MCS,VDE,SAA.

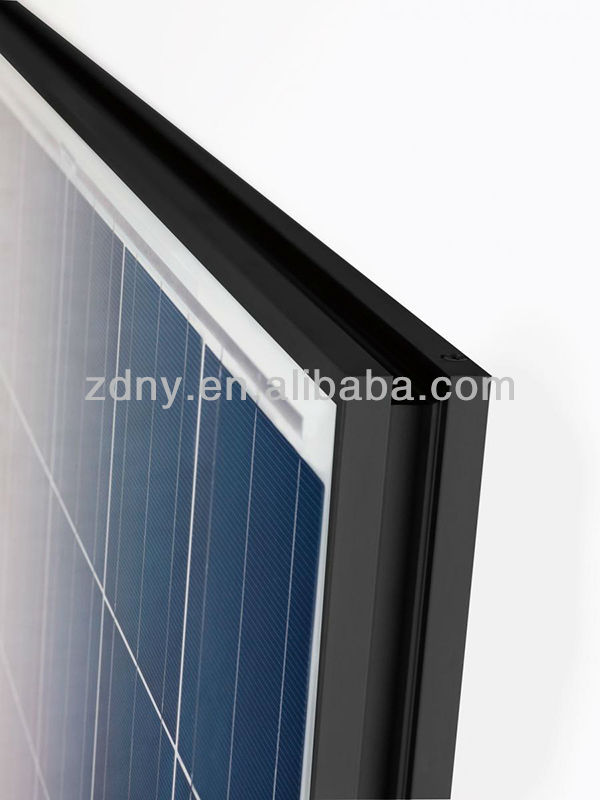

Details:

poly solar panel 250W proved by the CE,IEC,TUV,UL,MCS,VDE,SAA.

Home use projects:

poly solar panel 250W proved by the CE,IEC,TUV,UL,MCS,VDE,SAA.

solar plant on roof :

poly solar panel 250W proved by the CE,IEC,TUV,UL,MCS,VDE,SAA.

Welding:

poly solar panel 250W proved by the CE,IEC,TUV,UL,MCS,VDE,SAA.

Lamination:

poly solar panel 250W proved by the CE,IEC,TUV,UL,MCS,VDE,SAA.

framing:

poly solar panel 250W proved by the CE,IEC,TUV,UL,MCS,VDE,SAA.

packing:

poly solar panel 250W proved by the CE,IEC,TUV,UL,MCS,VDE,SAA.

paking:

poly solar panel 250W proved by the CE,IEC,TUV,UL,MCS,VDE,SAA.
